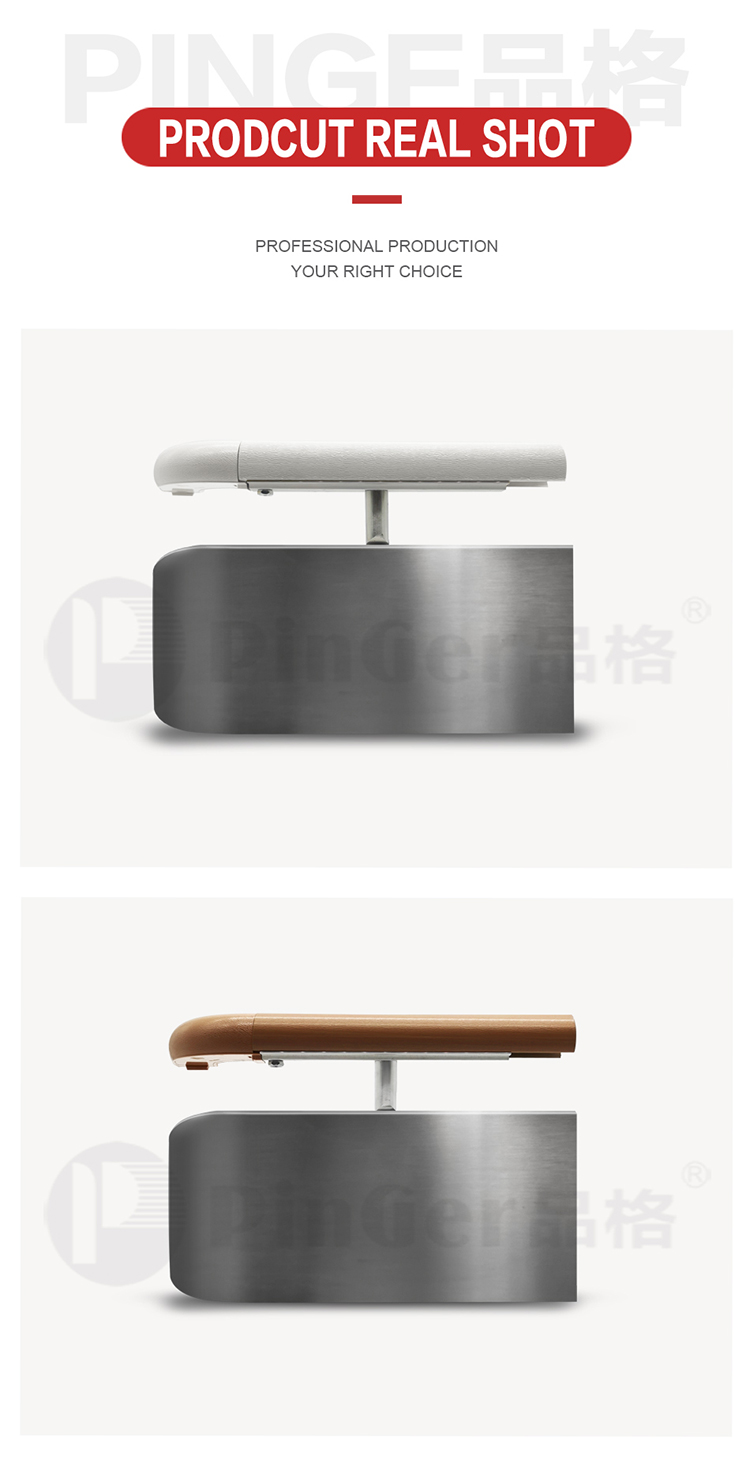

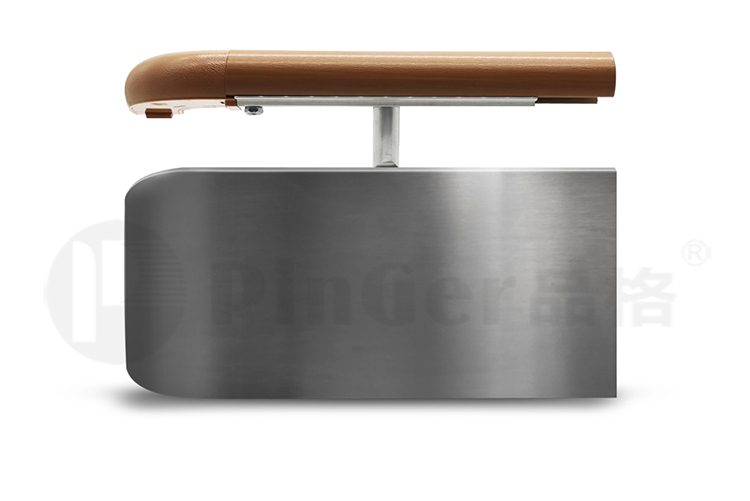

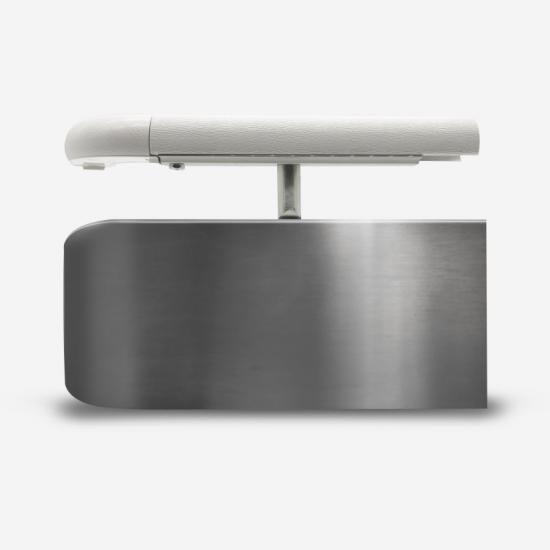

Product Name：175mm Stainless Steel Crash Handrail
175mm Stainless Steel Crash Handrail is made of high quality stainless steel, ensuring corrosion resistance, wear resistance and long service life. The armrest is 175mm high, suitable for a variety of holding needs, providing a comfortable feel, while ensuring stable support;The unique anti-collision structure can effectively reduce the collision between people and walls or obstacles, protect the safety of users, and reduce the damage to the building; The gloss of stainless steel and simple line design make the handrail both practical and beautiful, suitable for a variety of modern architectural styles, and enhance the overall visual effect of the corridor; Stainless steel surface is smooth, not easy to attach dirt, easy to clean and maintain, always keep the corridor environment clean.
| TECHNOLOGY DATA | |
| Brand | PinGer |
| Product No | Handrails HR175 |
| Material |
vinyl cover*aliunimum retauner, 304 stainless steel bumper cover, ABS right\ left elbow, ABS inside\outside elbow, s.s. bracket |
| Size | 304 stainless steel Bumper Cover: 102mm, vinyl cover grip: 38mm，s.s. bracket |
| Accessories | Bolts screws |
| Scope of application | Hospital, nursing home, restaurant, hotel, school, kindergarten and other public places. |
| Color |
There are dozens of colors to choose |

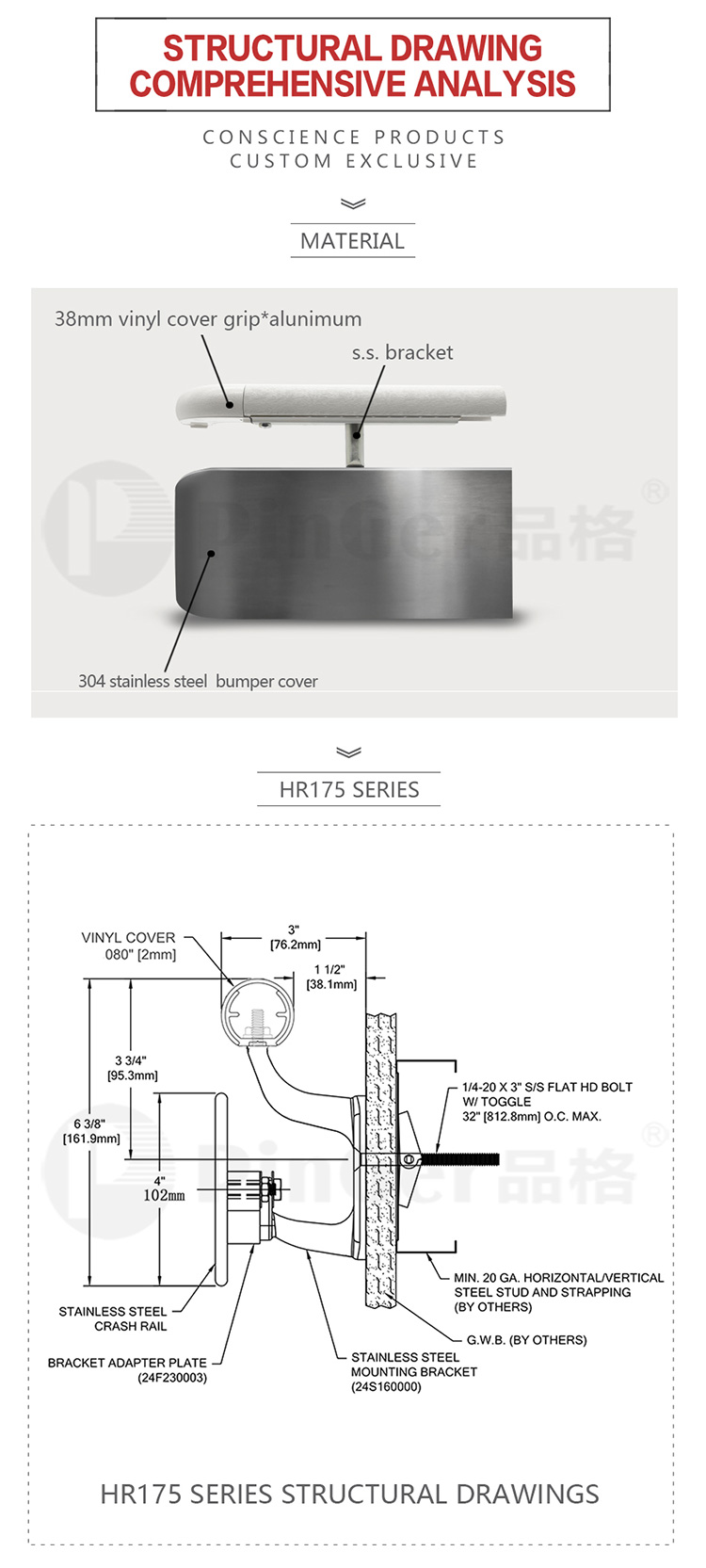

Structural Drawings

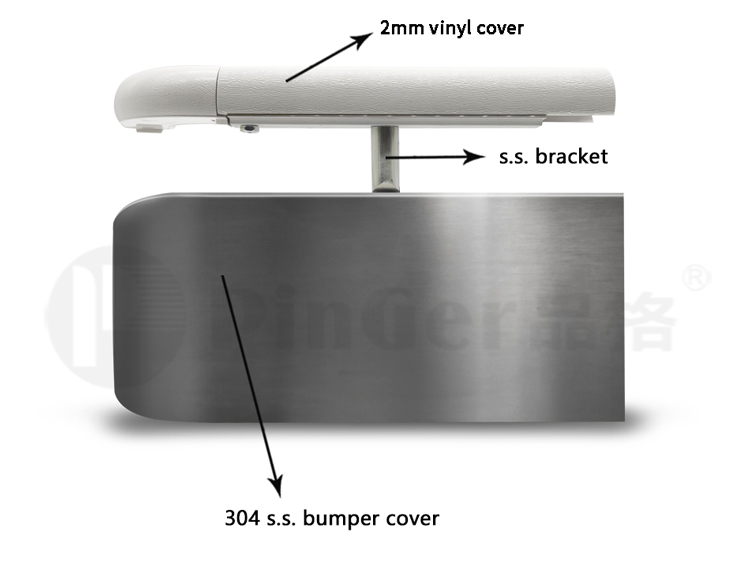

●38mm vinyl cover*aliunimum retauner + 102mm 304 stainless steel bumper cover

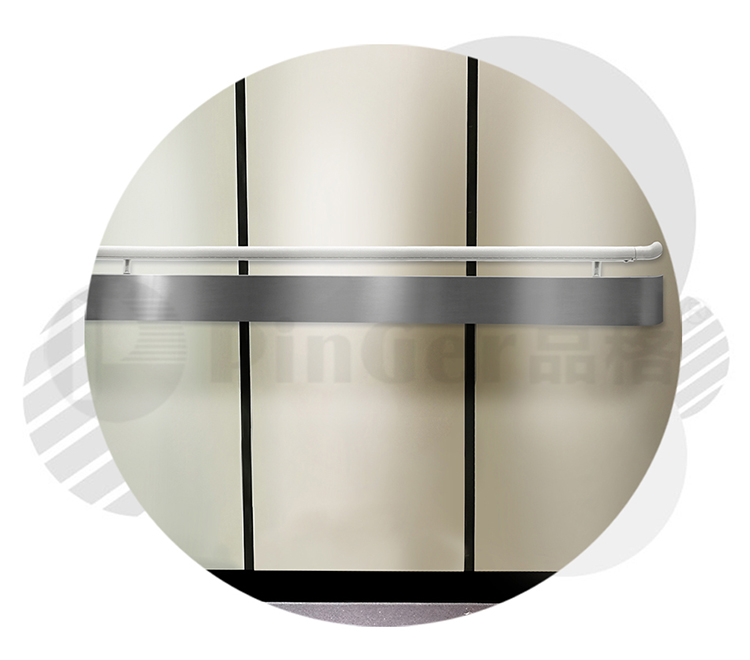

●Wall protection and handrail system
●Combines two functions,wall protection and corridor handrailing,which may be used seprately or unsion to prodive a uniform look throughout thr building.
PRODUCT CHARACTERISTICS
1、High quality raw materials

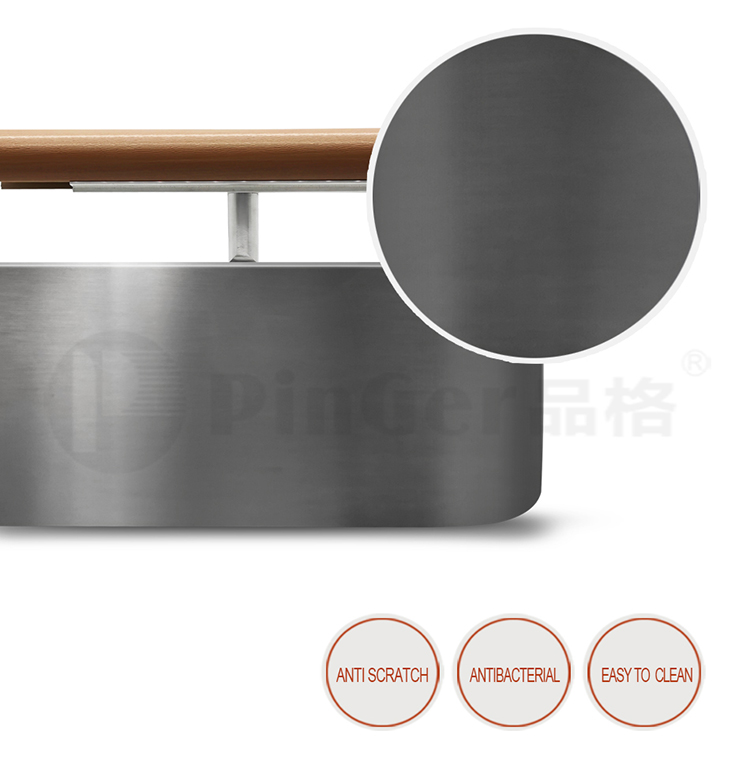

The 304 stainless steel bumper cover is oxidized to ensure no rust and can be used effectively for a long time.
2、Solid And Durable
2.0mm Vinyl cover surface cover plate has fine particles and compact density. It has anti-collision,fireproof, anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.
The surface layer has anti- slip fine lines and anti-fouling treatment, which is easy to clean.
3、Comfortable And Convenient
The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.
WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS
●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.
●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.
The 175mm Stainless Steel Crash Handrail not only provides a convenient and safe passage environment for pedestrians, but also adds a beautiful landscape to the interior decoration of the building. Choose this stainless steel crash-proof handrail to make your living space safer, more beautiful and more durable.
Installation Instruction
●Bolts&Screws
●Cut aluminum retainer and rubber strip to desured length
●Drill the doles
●Measure and transfer the handrail mounting hole locations from the bracket,elbow.
●Cut the vinyl cover to the lengths between returns and elbows.
|
TECHNICAL DATA |
||
|
Certificate |
Certificate standard |
Result |
|
Antibacterial |
ASTME2180 |
>99.9% inhibis growth |
|
Mould Proof |
ASTM G21-15 |
0 Class non growth |
|
Fire and smoke Rating |
ASTM E84-17 Class A |
Class A |
|
Horizontal Burning |
UL94HB |
PASS |
|
Crashproo |
ASTM D256-10el |
PASS |
|
Chemical and Corrosion resistance |
ASTM D543-14/ASTM D2240-15/ASTM D638-14 |
G00D |
|
TVOC |
CA CDPH 01350-voc |
G00D |
|
Color Diference |
SAEJ1545-2005 |
G00D |
|
Color staining |
EN423：2001 |
G00D |
|
Phthalate Test |
SGS |
PASS |
|
Fomaldehyde |
CA CDPH 01350-voc GB/T 18580-2017 |
PASS |
|
Heavy metal Test[Lead& Cadmium |
CA65 |
PASS |

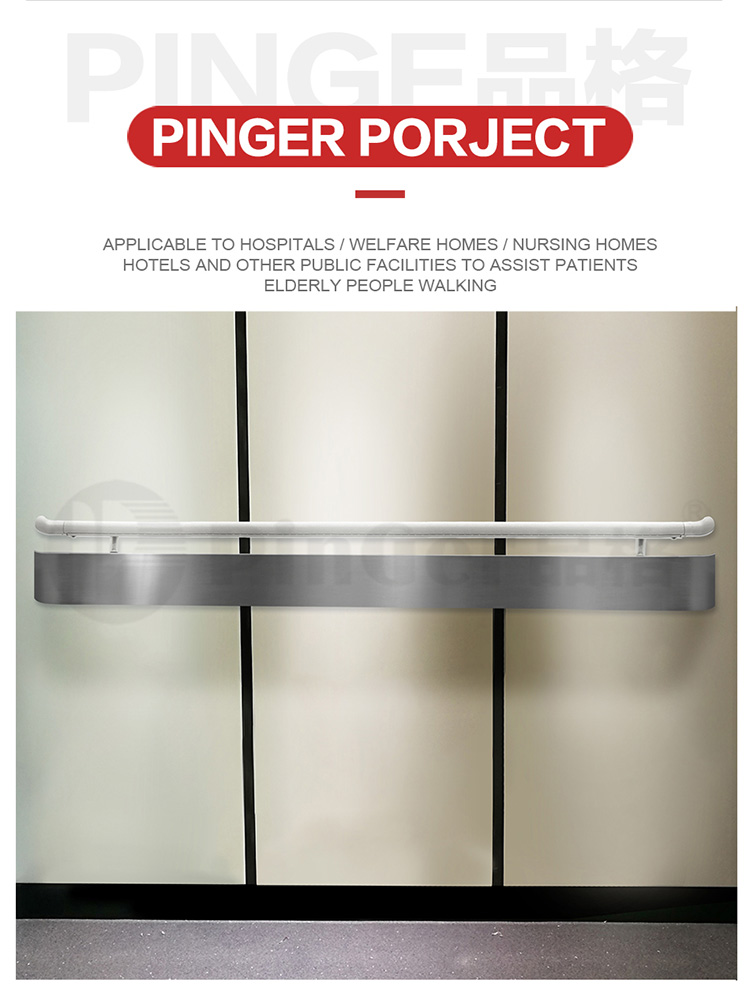

| Application | ||
| Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on. | ||
CARE INSTRUCTIONS
| Cleaning And Maintenance Requirements | ||
|
Visitor folw rate |
cleaning and maintenance |
Stain processing |
|
Privte room |
one time in one year |
Require time |
|
Public place or corrider |
two or three times in one year |
Require time |
|
Main channel or main entry door |
one time lin one month |
Require time |
Remark：
1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.
4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning tool selection:
(1)clothes: clean clothes or scouring pad
(2)cleaner: nataural cleaner
Special remind：
●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
