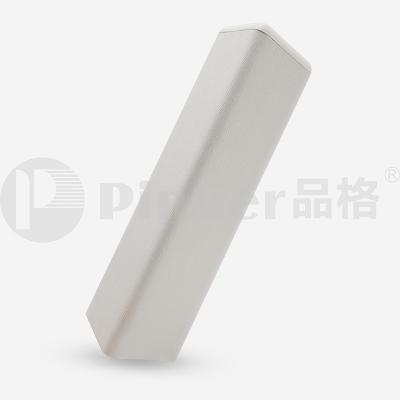

Product Name：Hospital Anti-Bacterial Vinyl Corner Guard
Specification
●Pinger cornner guard installed on the turning of wall to protect it from impact.Recommended hight are 1.2mm\1.5mm\2mm\3mm.
●Available in 135°, this corner guard can be installed on vinyl wall covering using heavy-duty adhesive.

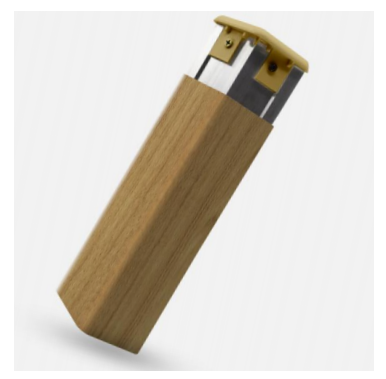

Pinger solid Color and wooden color :
●Available in all of our Standard Solid Colors and Wood Patterns, choose from NELUMBO NUCIFERA ,SAGA AND PRISTON.and can be used with Rigid Sheet, Wall Panels, Door Protection, Corner Guards, Handrails and Wall Guards.

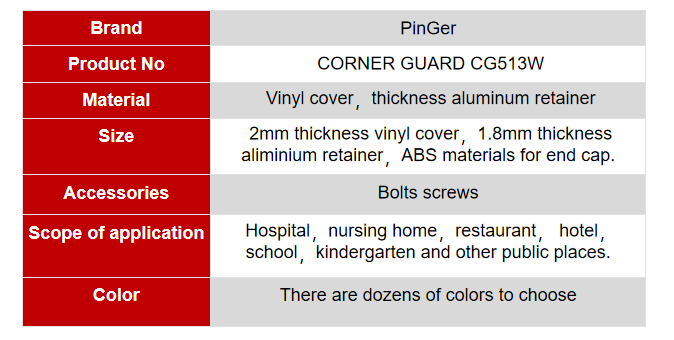

| TECHNOLOGY DATA | |
| Brand | PinGer |
| Product No | CORNER GUARD CG513W |

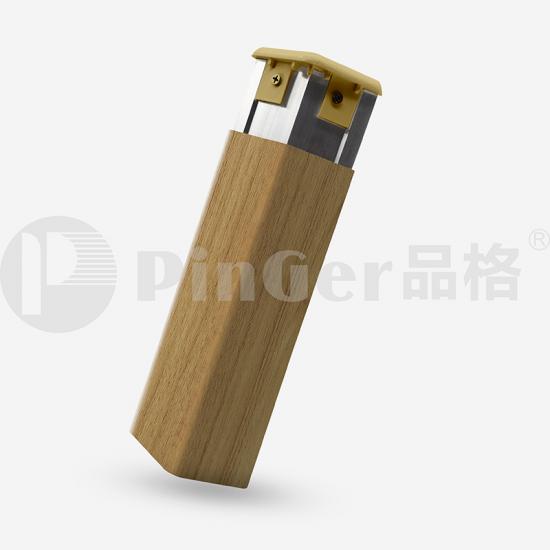

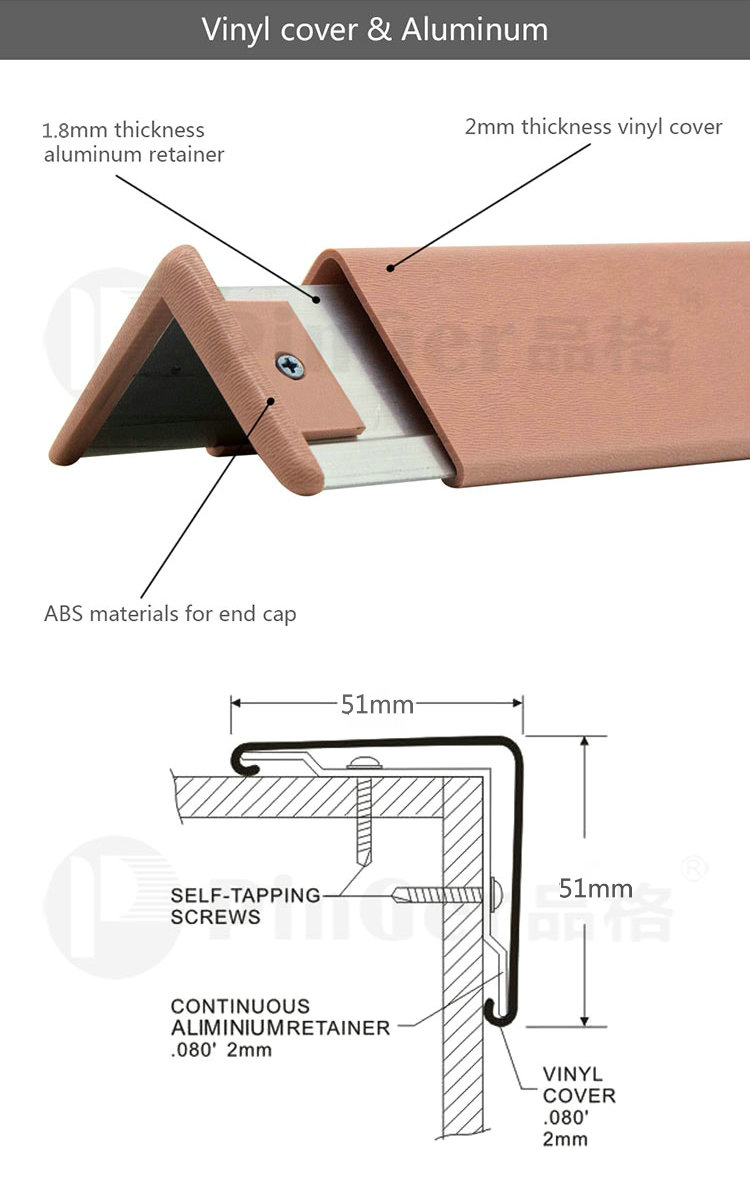

| Material | Vinyl cover，thickness aluminum retainer |
| Size | 2mm thickness vinyl cover，1.8mm thickness aliminium retainer，ABS materials for end cap. |
| Accessories | Bolts screws |

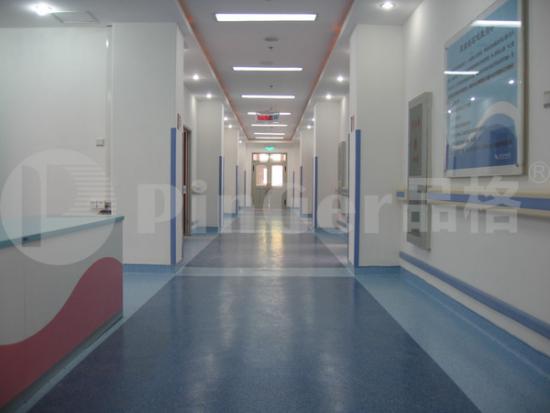

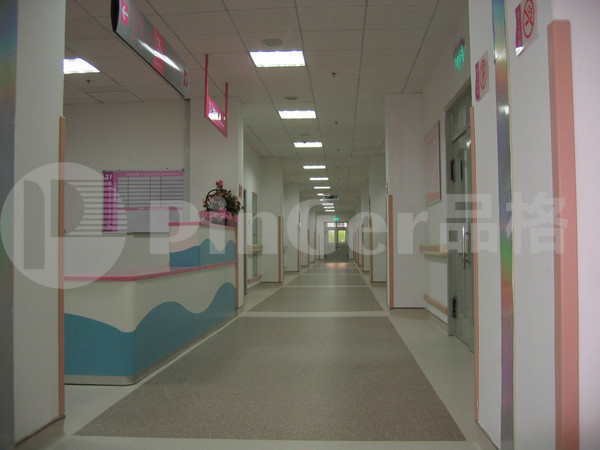

| Scope of application | Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places. |
| Color | There are dozens of colors to choose. |
PRODUCT CHARACTERISTICS
1、Atibacterial Vinyl Materia
Vinyl surface cover plate has fine particles and compact density. It has ant-collision，fireproof，anti-scratch and
abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.
The surface layer has anti slip fine lines and anti-fouling treatment， which is easy to clean.
2、High impact& Durable

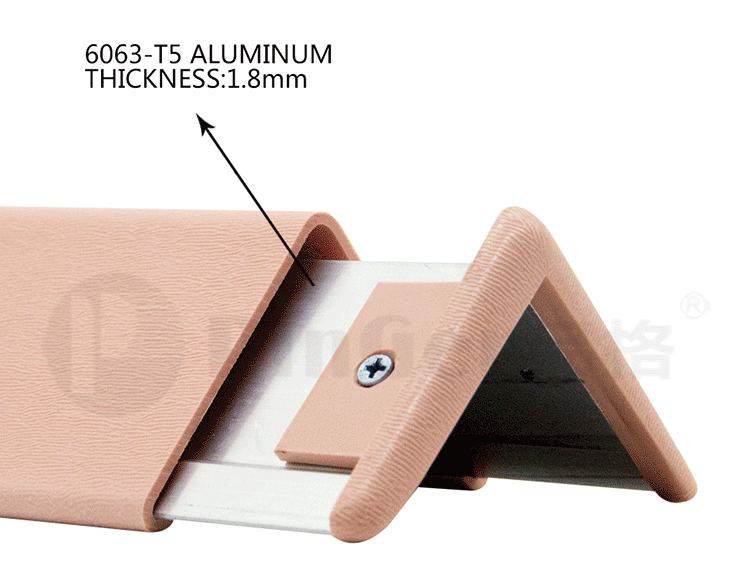

The 6063-T 5 aluminum is oxidized to ensure no rust and can be used effectively for along time.
3、Comfortable and convenient
Pinger corner guard installed on the turning of wall to protect it from impact. Recommended height are
1.2m， 1.5m， 2m， 3m.
WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS
●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung
Semiconductor Precision Workshop.
●Also suitable for interior decoration of hospital， schools laboratories， pharmaceutical plants airplanes， ships，
high-speed rails.
Technical Data Sheet
●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .
●Class A fire and smoke rating. (per ASTM E84-17)
●Class B fire and smoke rating (per GB8624-2012)
●Horizontal Burning (per UL94HB)
●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .
●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .
●TVOC (per CA CDPH 01350-voc )
●Color Difference (per SAEJ1545-2005)
●Color Stainning (per EN423:2001)
●Phthalate Test (per SGS)
●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)
●Heavy Metal Test (per CA65)
Pinger rigid vinyl sheet can be installed on a variety of substrates at full or partial height

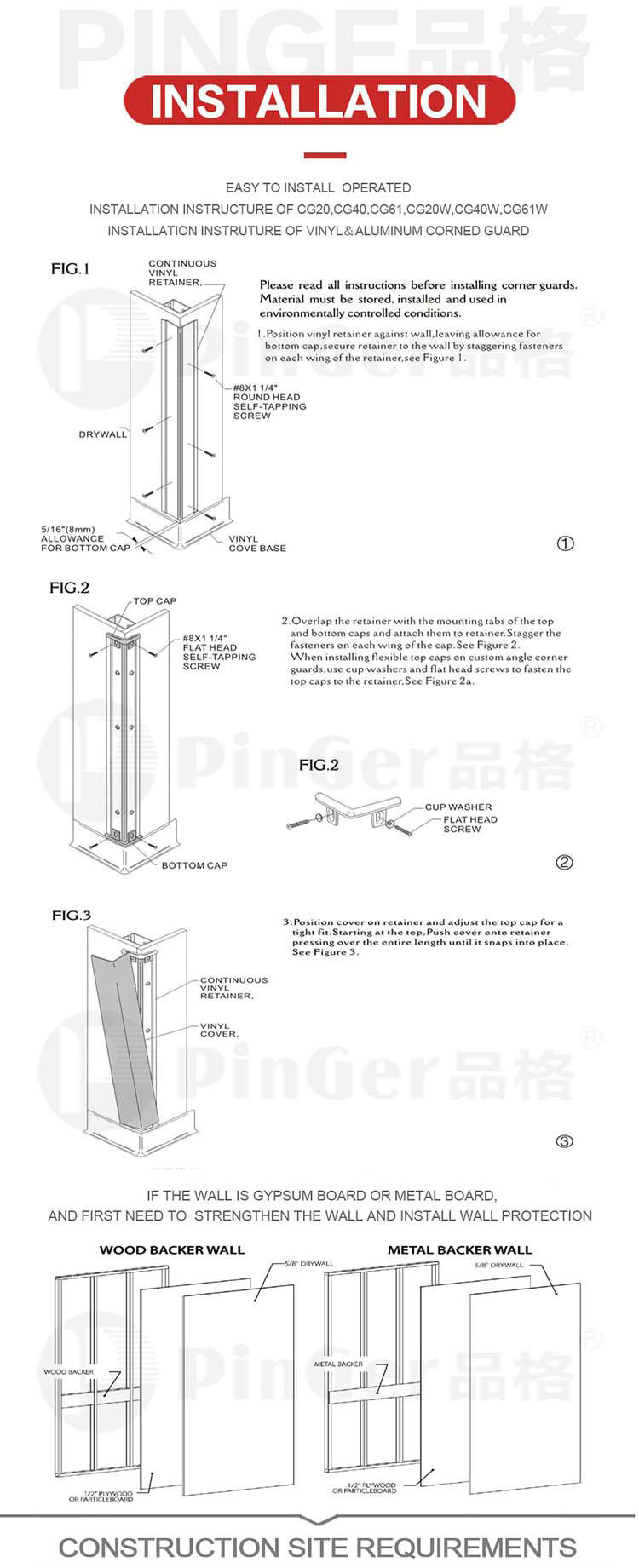

Installation Instruction–Wall Protection Corner Guards
●Aluminum insert for cover base installation with screws fixed.
Applications :
●High-traffic and high-impact areas . cleaning room,Corridors . Classrooms . Patient/resident rooms . Conference rooms .
Back of house . Columns Benefits . Endless design options allows for coordination within any interior design scheme . Durable.
Pinger keeps interior protected and looking good .
●Pinger color is integral throughout, helping reduce discoloration caused by scratching Building Segments . Aviation &
Transportation . Education . Healthcare . Hospitality . Office & Mixed Use . Retail . Senior Living . Sports & Entertainment
Pinger Project History
●Pinger now owns dozens of national inventions and new practical patents. It has passed third-party certifications from ISO9001
quality system certification, ISO14001 environmental monitoring system certification, EU CE certification, and Europe and the United
States SGS international testing certification.
● Pinger wall panel and wall protection system products are in the leading position among similar products. We not only have a stable
market share in China, but also sell products in more than 100 countries and regions in the world, and occupy a certain market share in the international market.
|
TECHNICAL DATA |
||
|
Certificate |
Certificate standard |
Result |
|
Antibacterial |
ASTME2180 |
>99.9% inhibis growth |
|
Mould Proof |
ASTM G21-15 |
0 Class non growth |
|
Fire and smoke Rating |
ASTM E84-17 Class A |
Class A |
|
Horizontal Burning |
UL94HB |
PASS |
|
Crashproo |
ASTM D256-10el |
PASS |
|
Chemical and Corrosion resistance |
ASTM D543-14/ASTM D2240-15/ASTM D638-14 |
G00D |
|
TVOC |
CA CDPH 01350-voc |
G00D |
|
Color Diference |
SAEJ1545-2005 |
G00D |
|
Color staining |
EN423：2001 |
G00D |
|
Phthalate Test |
SGS |
PASS |
|
Fomaldehyde |
CA CDPH 01350-voc GB/T 18580-2017 |
PASS |
|
Heavy metal Test[Lead& Cadmium |
CA65 |
PASS |
| Appication | ||
| Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on. | ||
| Cleaning And Maintenance Requirements | ||
|
Visitor folw rate |
cleaning and maintenance |
Stain processing |
|
Privte room |
one time in one year |
Require time |
|
Public place or corrider |
two or three times in one year |
Require time |
|
Main channel or main entry door |
one time lin one month |
Require time |
Remark：
1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.
4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning tool selection:
(1)clothes: clean clothes or scouring pad
(2)cleaner: nataural cleaner
Special remind：
●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
