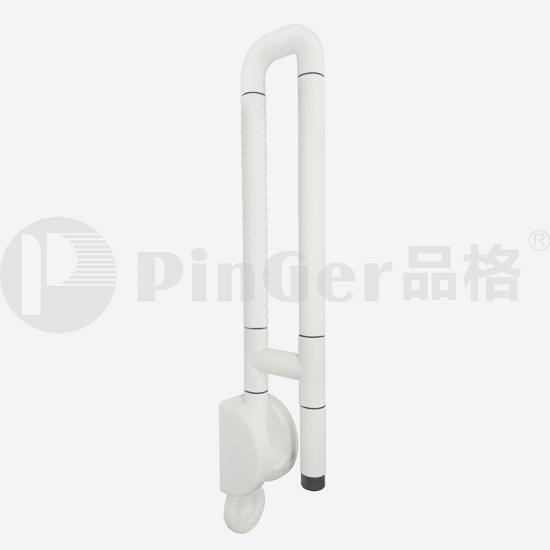

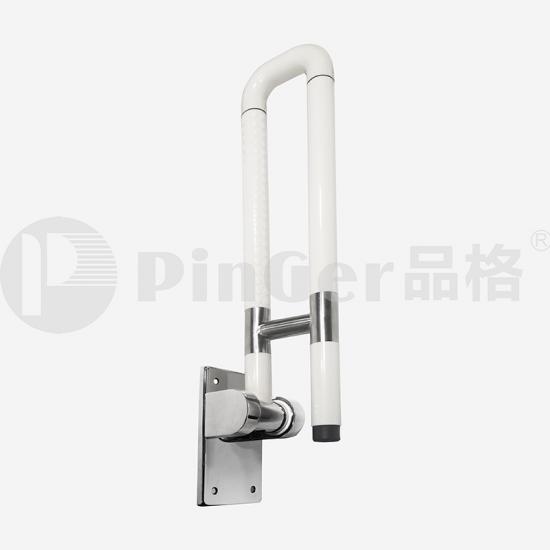

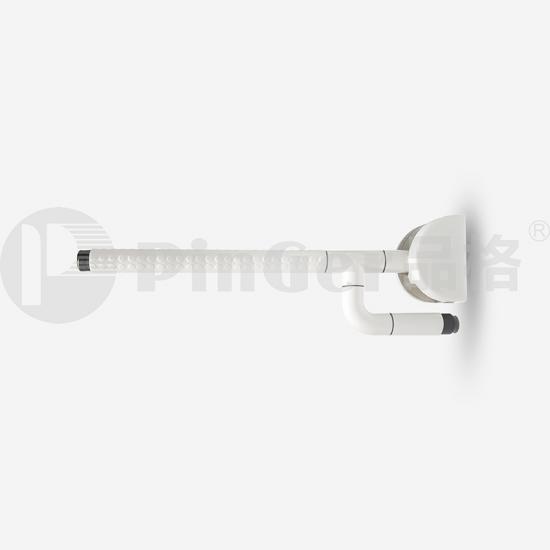

Product Name：Safety Auxiliary Nylon Handrails For Bathrooms
●ABS plate size is 200mm*130mm
●GB007D used beside the commode to assist user standing or sitting. Lift-up design offers a larger space for users.
| TECHNOLOGY DATA | |
| Brand | PinGer |
| Product No | GB007D |
| Material | Nylon tube thickness：4mm，Aluminum：±1.5mm |
| Size | Can be made straight，U-shaped，L-shaped，seat，etc.，size standard size，can also be done according to customer size |
| Accessories | Countersunk head self tapping screw 6*60mm，6 PCT rubber |
| Scope of application | Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places. |
| Color | White，yellow，or can be made according to customer requirements |
PRODUCT CHARACTERISTICS
1、Antibacterial Environmental Protection
Strong antibacterial and antifungal，suppresses the growth of fungi on the surface of materials Nylon material that does not contain lead and any other metals and harms human health，is environmentally friendly and can be recycled.
2、Non-Slip Materia BARRIER-FREE HANDRAILS
With non-slip granule design for a firm grip，comfortable grip，warmth and safety.
3、Load-Bearing Design BARRIER-FREE HANDRAILS
The outside nylon tube diameter is 35*3.5mm，retainer aluminum tube diameter is 28*1.5mm The combination of aluminum alloy tube and stainless steel tube is not easy to rust，and the design is tight and can be used for along time.
4、Anti-Aging Corrosion Resistant BARRIER-FREE HANDRAILS
Anti-aging，long service life，chemical resistance，strong corrosive，no rust，suitable for wet space，antistatic，wear resistant.
Installation Instruction
●Clean-upand Maintenance Instructions
●Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
●If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
●If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe
●Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning Tool Selection
●clothes: clean clothes or scouring pad
●Detergent: Use a neutral detergent or alcohol. Special reminder: oily (paint) stains trace is more difficult to remove, so the product can be made. spray painting to decorate the wall, such as oil (paint class) after the spray painting to remove and replace as a block wallboard. (Oily pen wants to wipe, usable pure alcohol or alcohol adds water to scrub and wipe).
|
TECHNICAL DATA |
||
|
Certificate |
Certificate standard |
Result |
|
Antibacterial |
ASTME2180 |
>99.9% inhibis growth |
|
Mould Proof |
ASTM G21-15 |
0 Class non growth |
|
Fire and smoke Rating |
ASTM E84-17 Class A |
Class A |
|
Horizontal Burning |
UL94HB |
PASS |
|
Crashproo |
ASTM D256-10el |
PASS |
|
Chemical and Corrosion resistance |
ASTM D543-14/ASTM D2240-15/ASTM D638-14 |
G00D |
|
TVOC |
CA CDPH 01350-voc |
G00D |
|
Color Diference |
SAEJ1545-2005 |
G00D |
|
Color staining |
EN423：2001 |
G00D |
|
Phthalate Test |
SGS |
PASS |
|
Fomaldehyde |
CA CDPH 01350-voc GB/T 18580-2017 |
PASS |
|
Heavy metal Test[Lead& Cadmium |
CA65 |
PASS |
| Appication | ||
| Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on. | ||
CARE INSTRUCTIONS
| Cleaning And Maintenance Requirements | ||
|
Visitor folw rate |
cleaning and maintenance |
Stain processing |
|
Privte room |
one time in one year |
Require time |
|
Public place or corrider |
two or three times in one year |
Require time |
|
Main channel or main entry door |
one time lin one month |
Require time |
Renark：
1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.
4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning tool selection:
(1)clothes: clean clothes or scouring pad
(2)cleaner: nataural cleaner
Special remind：
●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
