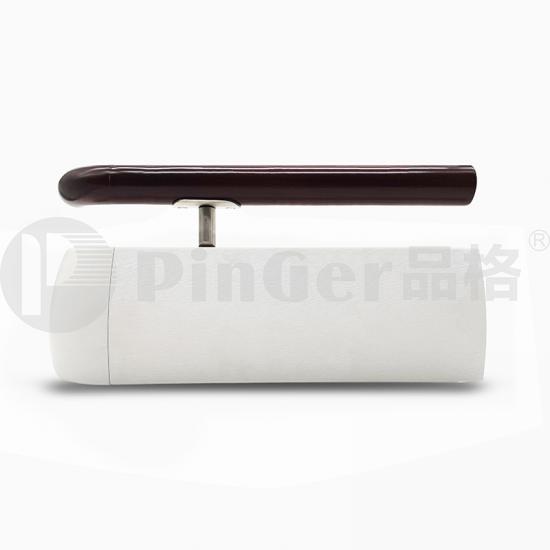

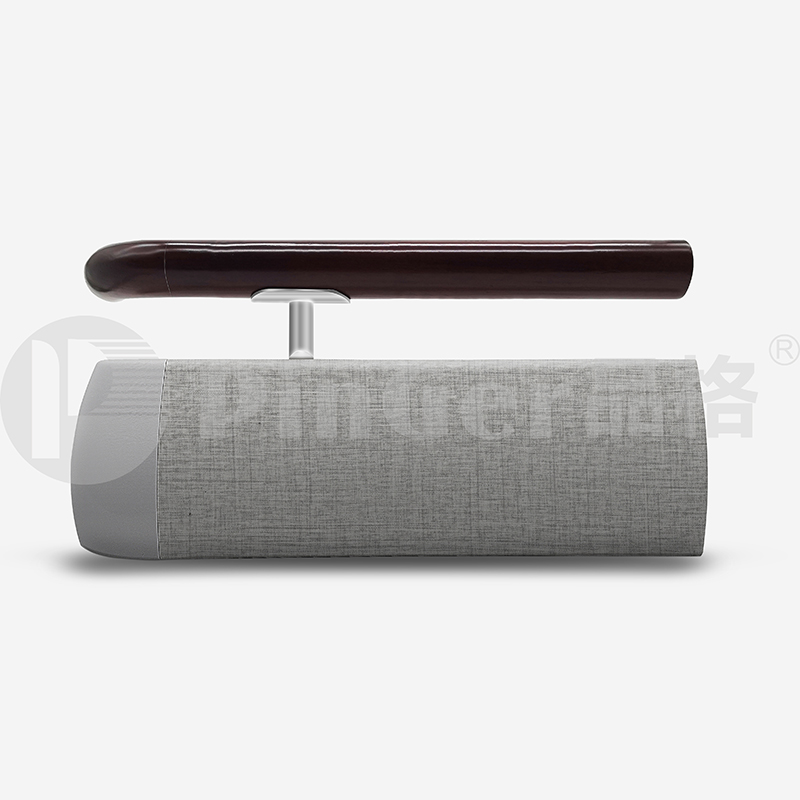

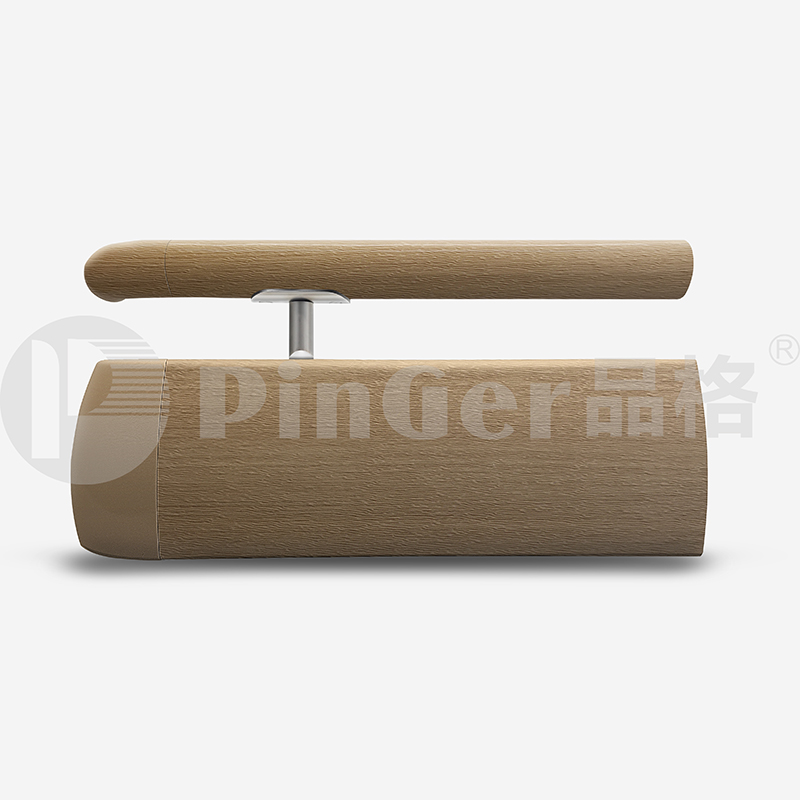

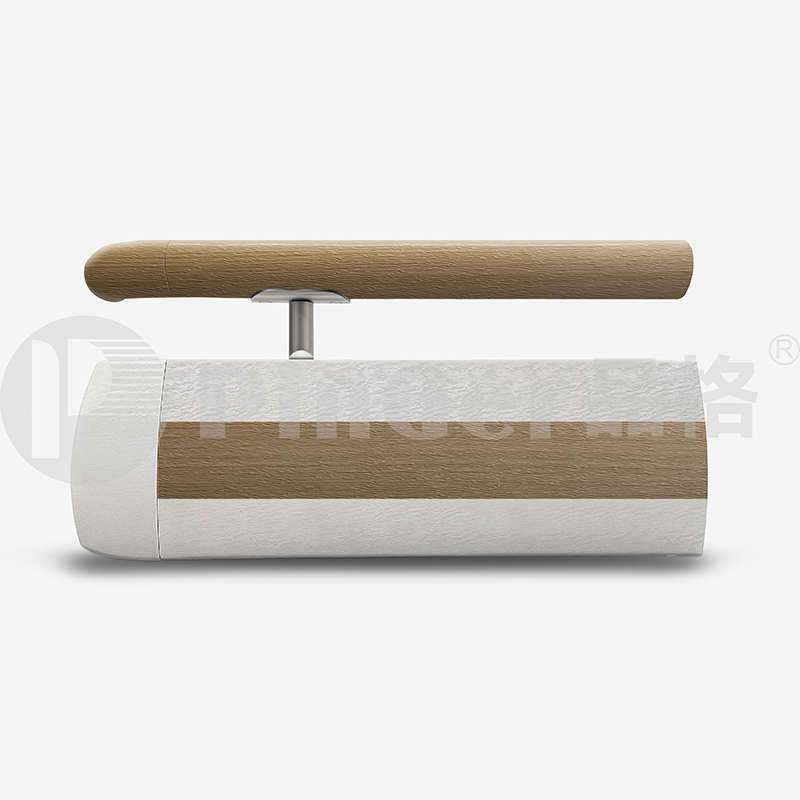

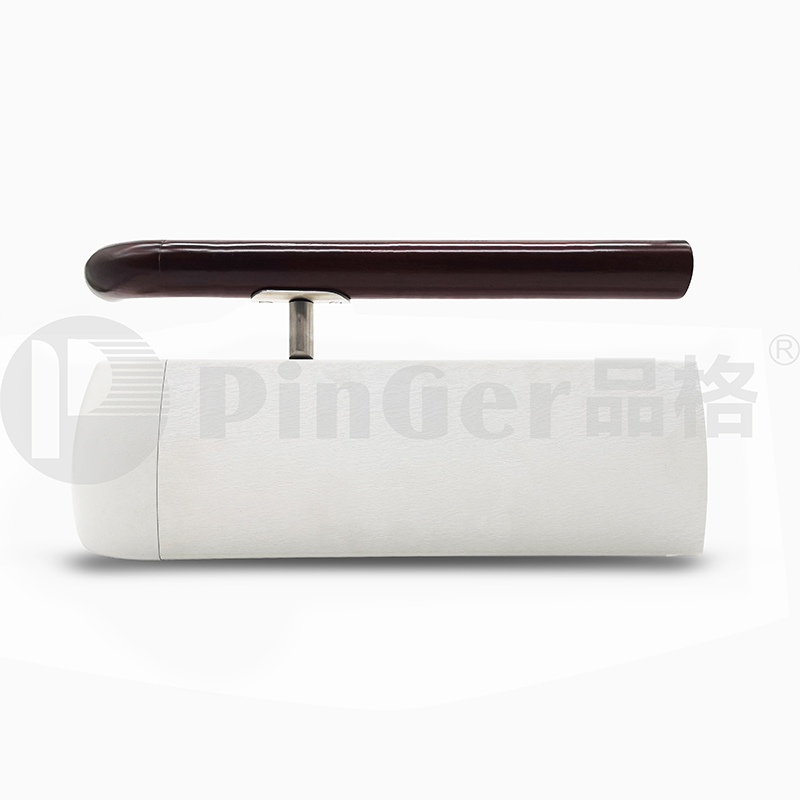

Product Name : Corridor Wall Anti Collision Vinyl Handrail
Specification

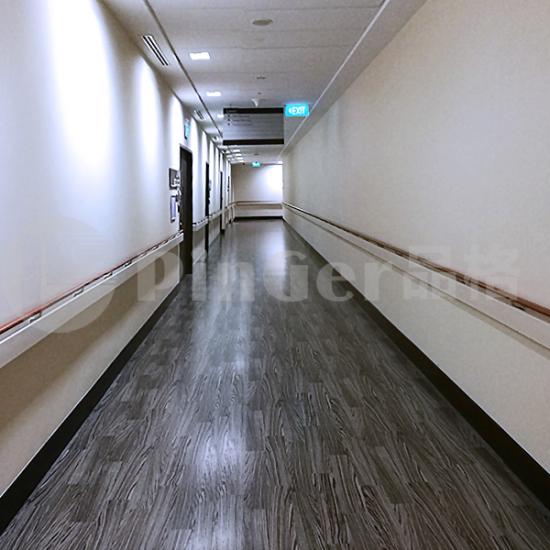

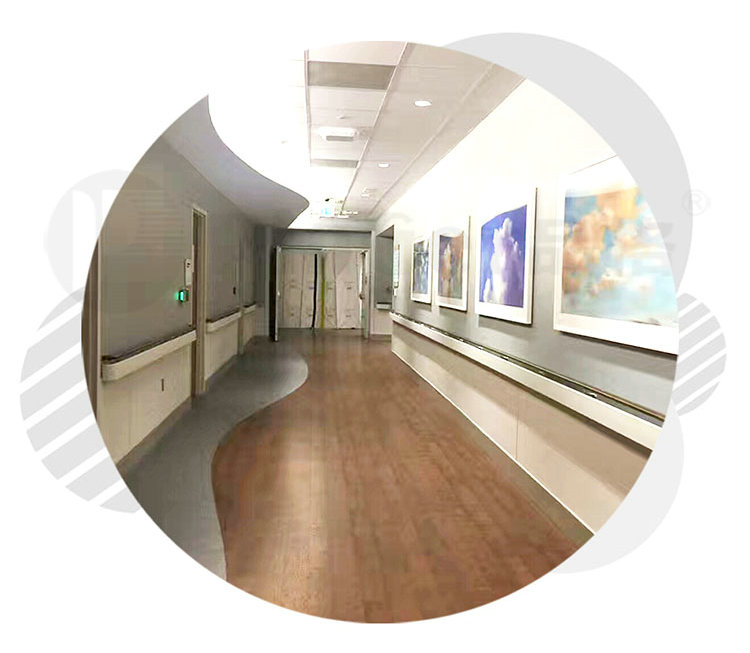

●Handrails can be seen everywhere in hospitals or nursing homes. People hold on to them to provide stability or support.
| TECHNOLOGY DATA | |
| Brand | PinGer |
| Product No | Handrails HRW2003 |
| Material | solid wood、Vinyl cover、aluminum cover |
| Size | 38mm solid wood,2mm thickness vinyl cover,1.8mm thickness aluminum,ABS materials for elbows and brackets. |
| Accessories | Bolts screws |
| Scope of application | Hospital，nursing home，restaurant， hotel，school，kindergarten and other public places. |
| Color | There are dozens of colors to choose. |

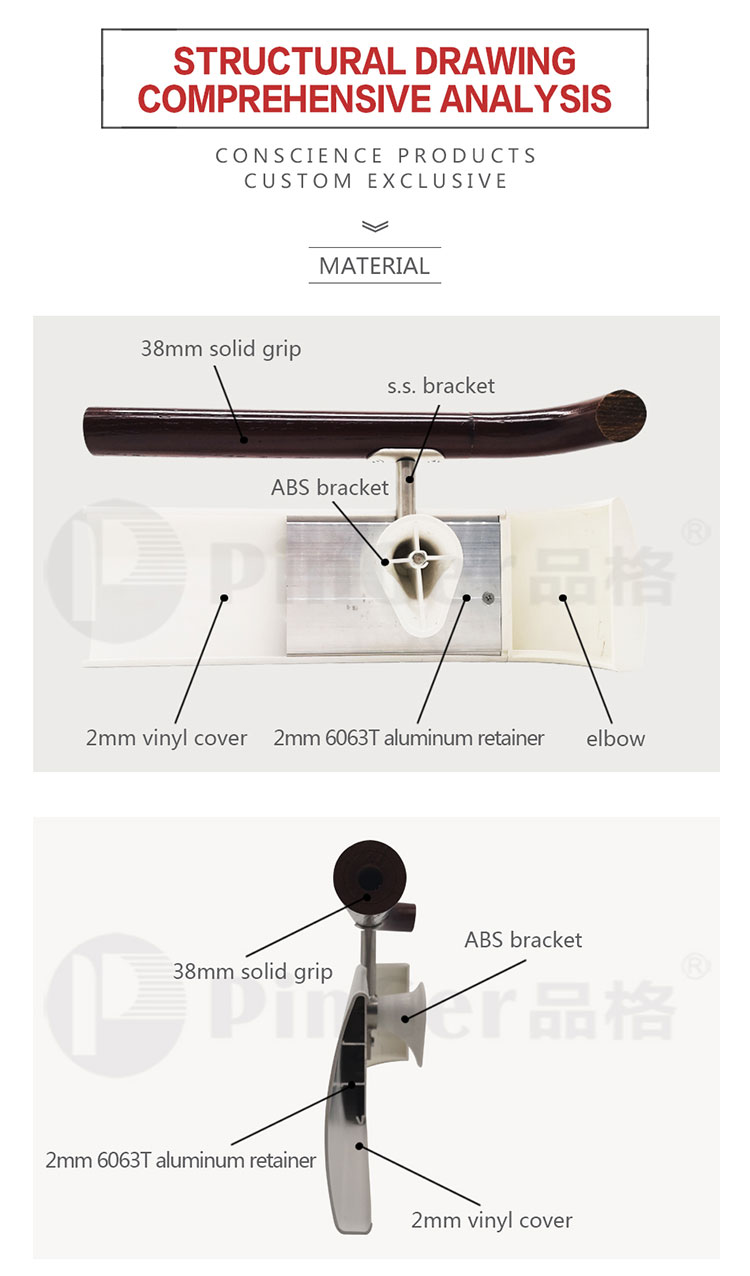

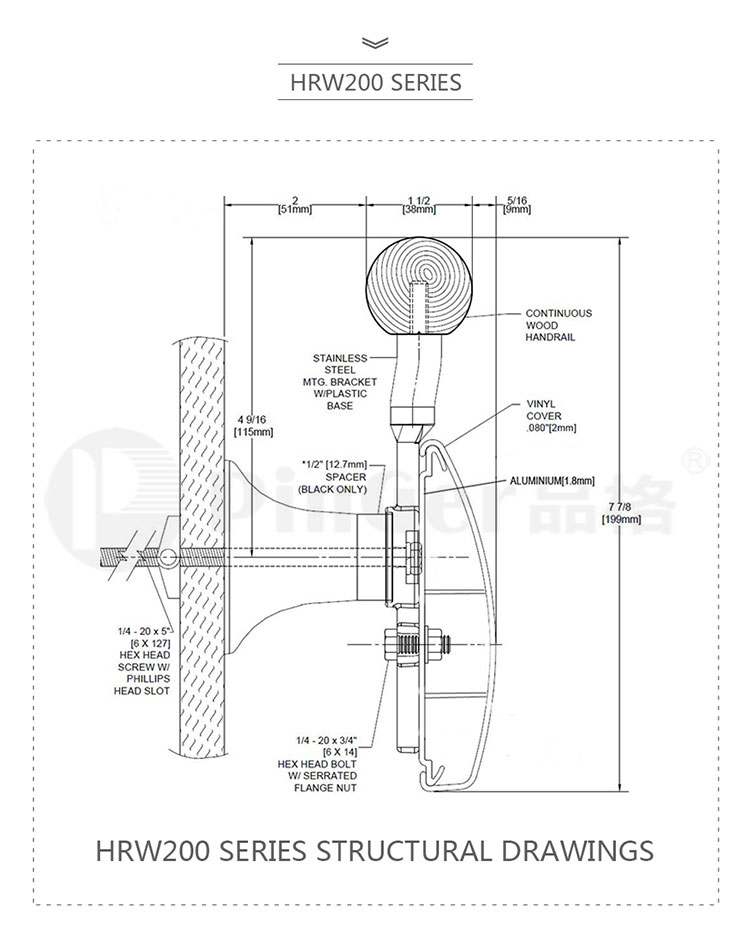

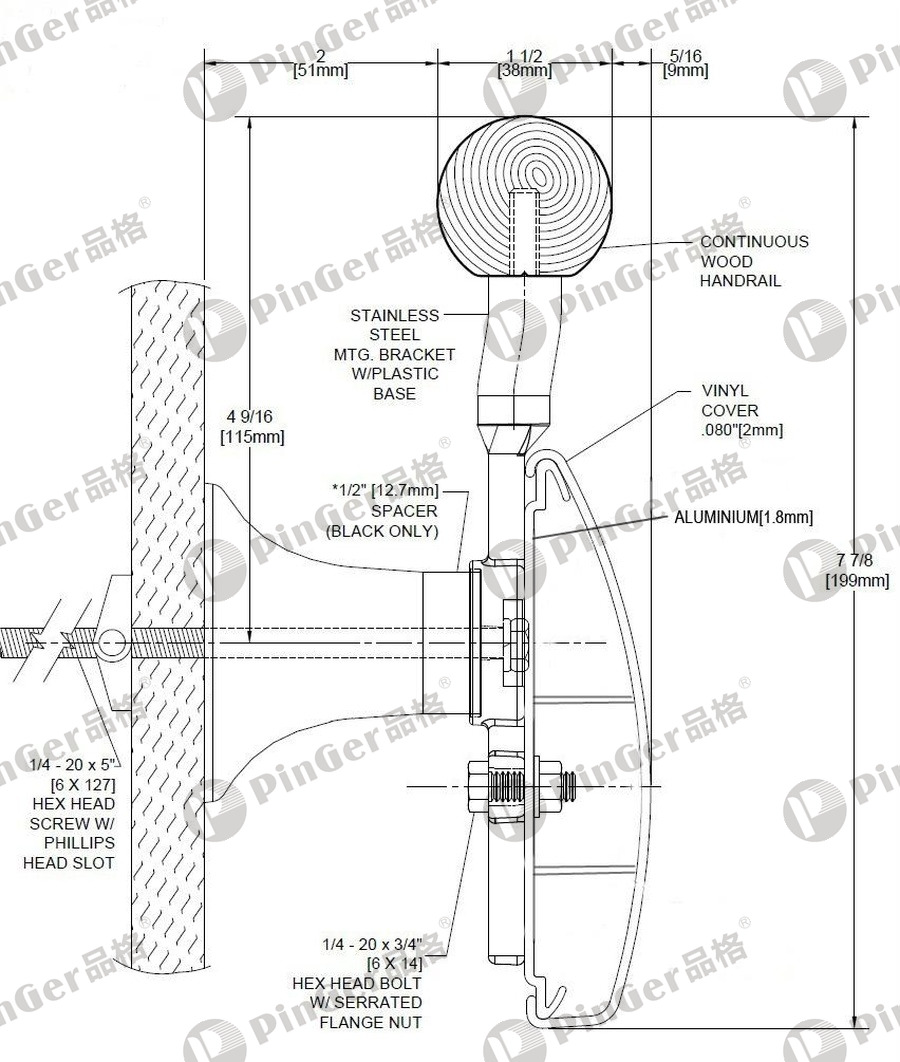

Structural Drawings

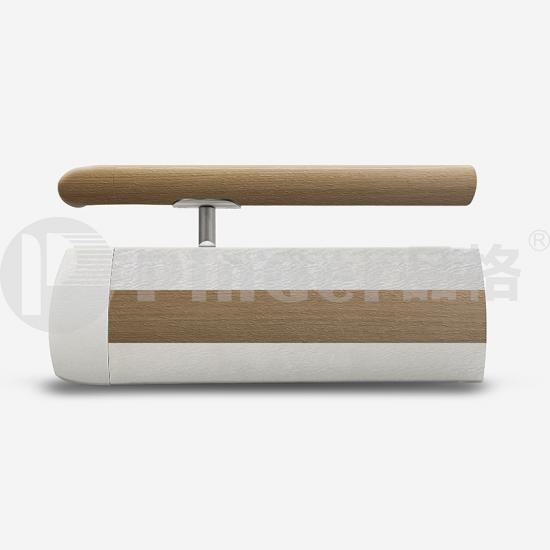

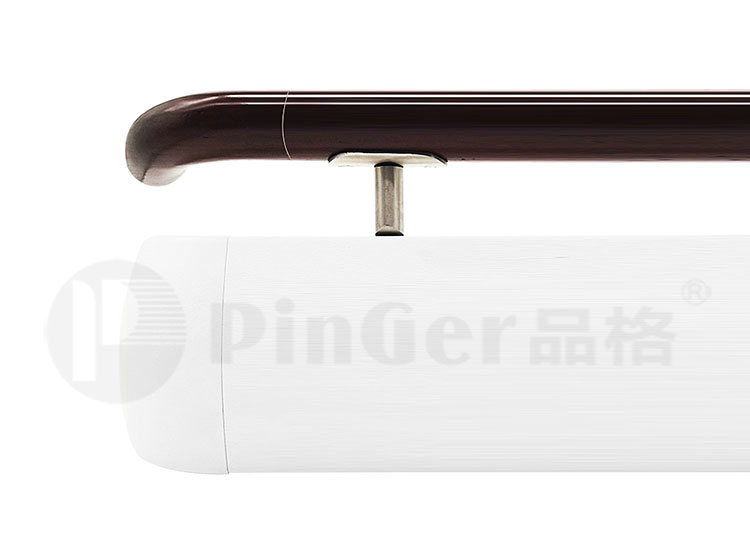

●38mm grip rail+127mm bumper rail+insert aluminum with screws.
●Wall protection and handrail system
●Combines two functions,wall protection and corridor handrailing,which may be used seprately or unsion to prodive a uniform look throughout thr building.
PRODUCT CHARACTERISTICS

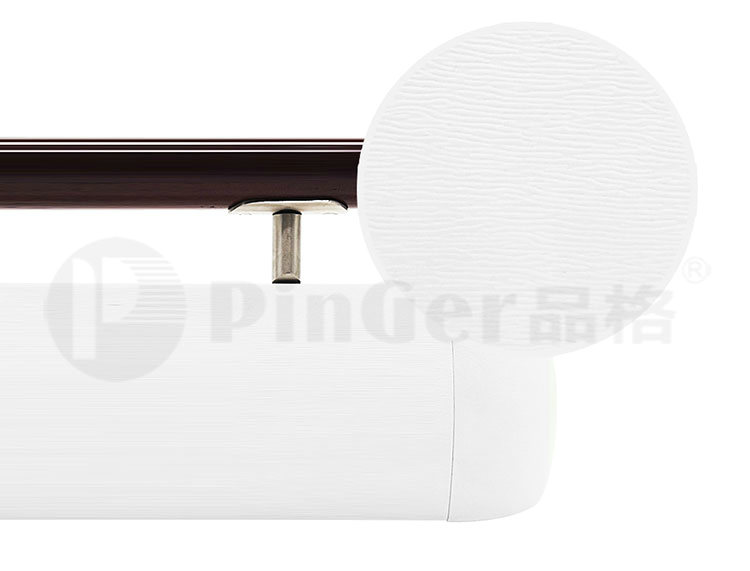

1、Antibacterial Materials
2.0mm vinyl surface cover plate has fine particles and compact density. It has ant-collision，fireproof，anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.
The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.
2、Solid And Durable

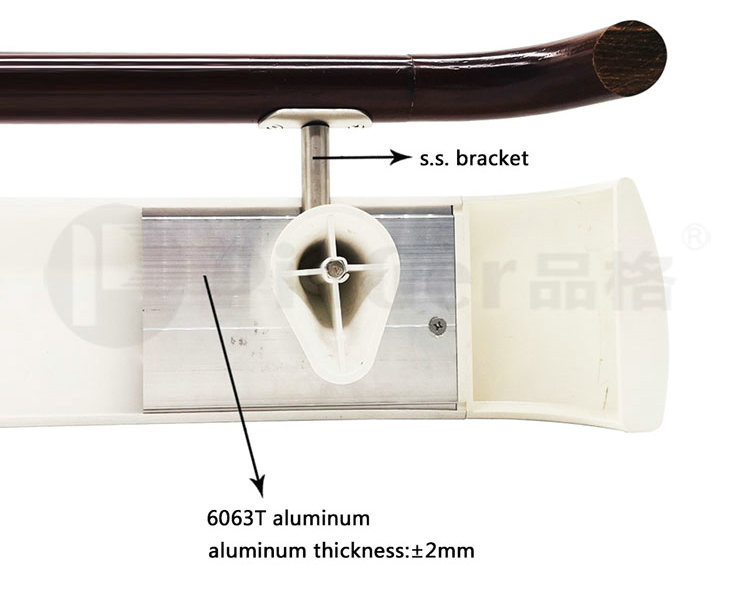

The 6063-T5 aluminum is oxidized to ensure no rust and it can be used for a long time.
3、Comfortable And Convenient
The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

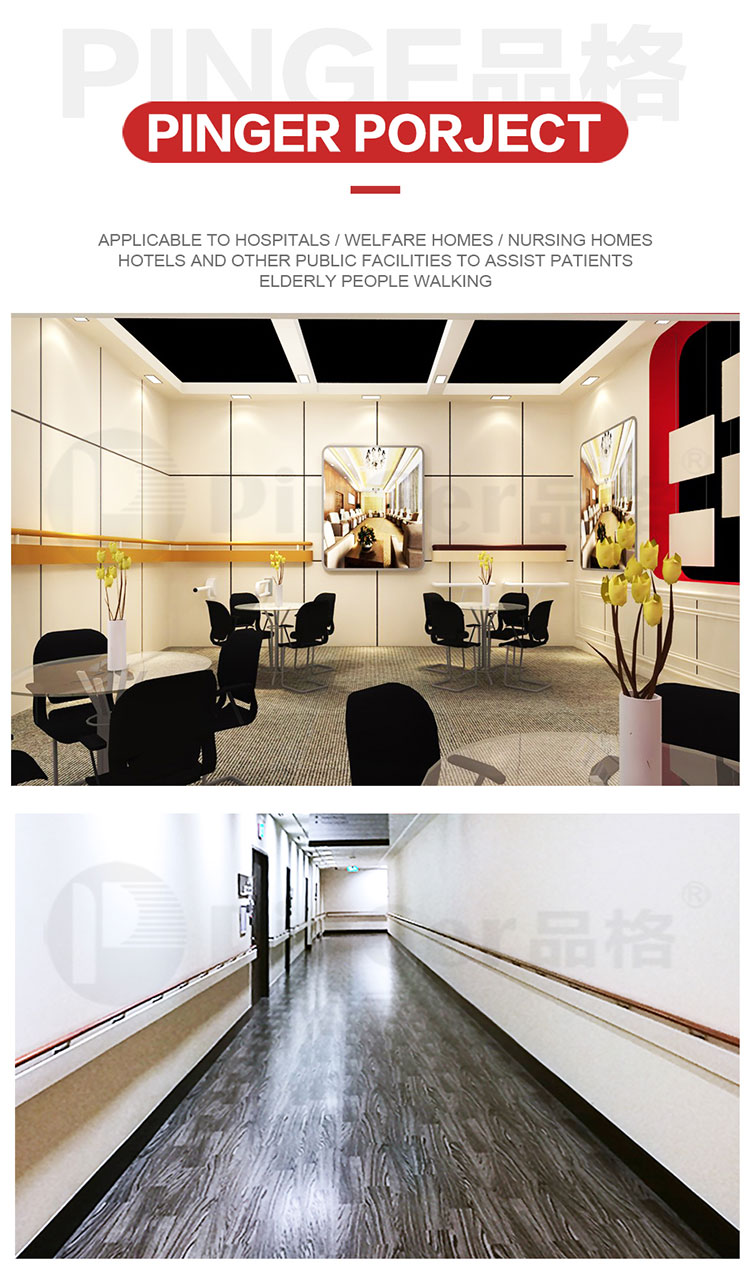

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS
●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.
●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.
Feature Specification
● Anti-bacterial and strongly anti-mildew
● Fire retardant
● Chemical resistance and strong corrosion resistance
●Free Formaldenhyde and green envionment
● No benzene,no heavy metal,can be recycled and used
●Anti-collosion and wear-resistant with super weather resistance
● The surface of wall panel is easy to clean
● Rich color
● Stable size
● Easy to install,no noise during installation
Technical Data Sheet
●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .
●Class A fire and smoke rating. (per ASTM E84-17)
●Class B fire and smoke rating (per GB8624-2012)
●Horizontal Burning (per UL94HB)
●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .
●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .
●TVOC (per CA CDPH 01350-voc )
●Color Difference (per SAEJ1545-2005)
●Color Stainning (per EN423:2001)
●Phthalate Test (per SGS)
●Formaldehyde (per CA CDPH 01350-voc And GB/T 18580-2017)
●Heavy Metal Test (per CA65)

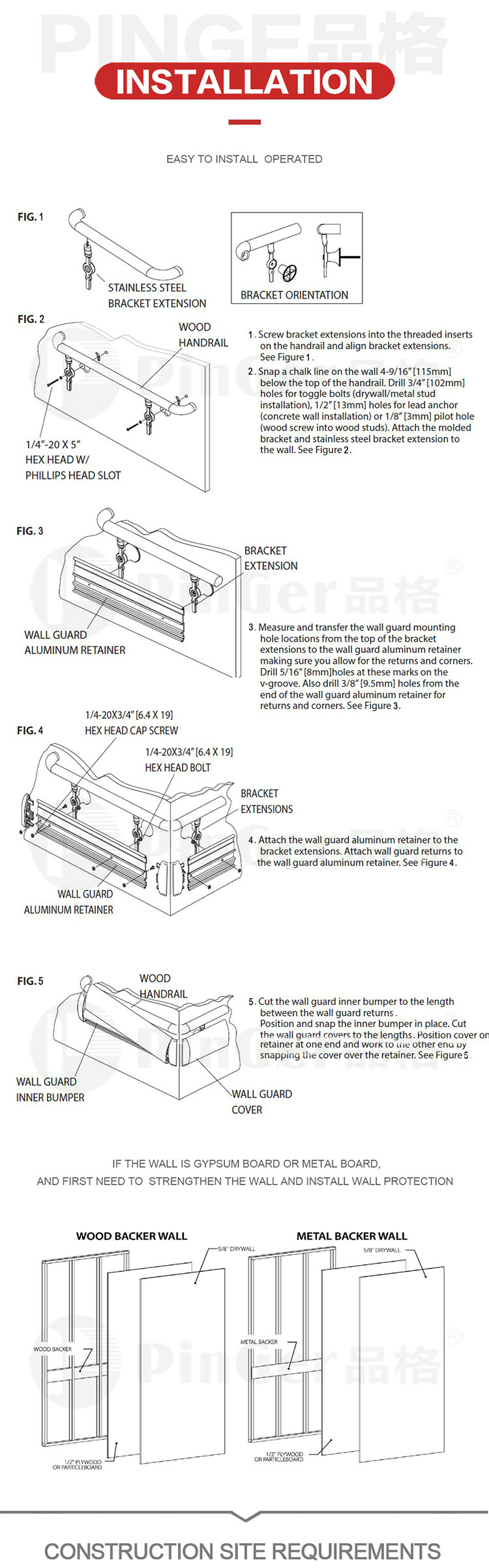

Installation Instruction
●Bolts&Screws
●Cut aluminum retainer and rubber strip to desured length
●Drill the doles
●Measure and transfer the handrail mounting hole locations from the bracket,elbow.
●Cut the vinyl cover to the lengths between returns and elbows.
|
TECHNICAL DATA |
||
|
Certificate |
Certificate standard |
Result |
|
Antibacterial |
ASTME2180 |
>99.9% inhibis growth |
|
Mould Proof |
ASTM G21-15 |
0 Class non growth |
|
Fire and smoke Rating |
ASTM E84-17 Class A |
Class A |
|
Horizontal Burning |
UL94HB |
PASS |
|
Crashproo |
ASTM D256-10el |
PASS |
|
Chemical and Corrosion resistance |
ASTM D543-14/ASTM D2240-15/ASTM D638-14 |
G00D |
|
TVOC |
CA CDPH 01350-voc |
G00D |
|
Color Diference |
SAEJ1545-2005 |
G00D |
|
Color staining |
EN423：2001 |
G00D |
|
Phthalate Test |
SGS |
PASS |
|
Fomaldehyde |
CA CDPH 01350-voc GB/T 18580-2017 |
PASS |
|
Heavy metal Test[Lead& Cadmium |
CA65 |
PASS |
| Application | ||
| Hospital hotel airport，High-end ofice building High-end Vila，kKindergarten，School，Sport Hal，Factory，.Plane，High-speed Train，Loose pulley.public place and so on. | ||
CARE INSTRUCTIONS
| Cleaning And Maintenance Requirements | ||
|
Visitor folw rate |
cleaning and maintenance |
Stain processing |
|
Privte room |
one time in one year |
Require time |
|
Public place or corrider |
two or three times in one year |
Require time |
|
Main channel or main entry door |
one time lin one month |
Require time |
Remark：
1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth
2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe
3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.
4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.
Cleaning tool selection:
(1)clothes: clean clothes or scouring pad
(2)cleaner: nataural cleaner
Special remind：
●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
