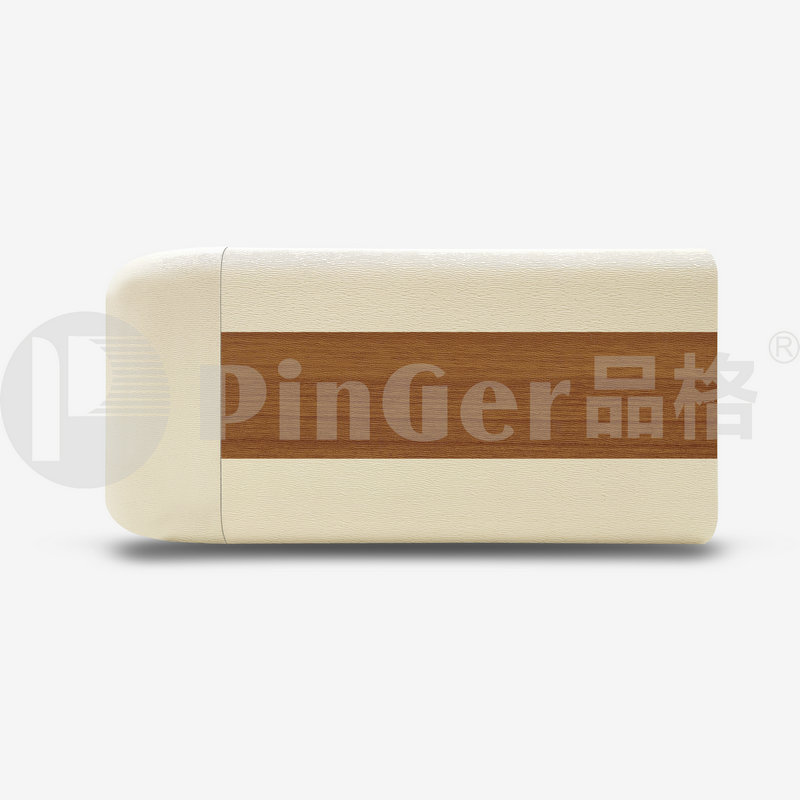

Product Name：Hospital Promotional Wall Mounted Vinyl Handrails

Specification

●Flat profiles offer an ideal solution in areas subject to heavy pedestrain traffic,cart and gurney activity.

●Stable shockproof Environmentally friendly antibacterial.

●Anti-collision and impact resistance Stable shockproof.

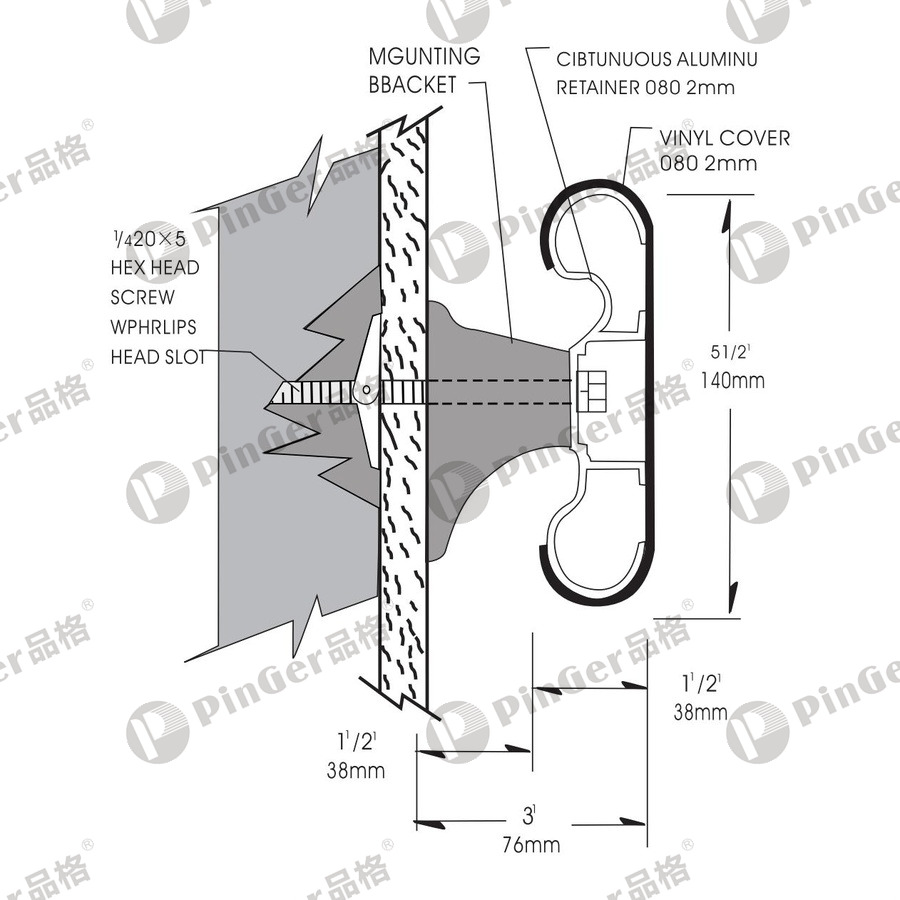

Structural Drawings

●Patented one piece vinyl assembly provides accent and unlimited variation of contrasting colors.

●return,inside and putside conrners reinforced with aluminium inserts

(This model we have two types:rubber strip/without rubber strip )

PRODUCT CHARACTERISTICS

1、New Vinyl Materials

2.0mm vinyl surface cover plate has fine particles and compact density. It has ant-collision，fireproof，anti-scratch and abrasion resistance,antibacterial and environmental protection functions through special treatment on the surface.

The surface layer has anti slip fine lines and anti-fouling treatment,which is easy to clean.

2、Solid And Durable

The 6063-T5 aluminum is oxidized to ensure no rust and it can be used for a long time.

3、Environmental Friendly

The hand-held part of handrail is in accordance with the requirments of human mechanics,and the hand-held areas has a comfortable and reasonable arc. handrails,wall guards,and corner guards provide maximum protection and damage to walls.

WIN THE TRUST AND FAVOR OF FAMOUS GLOBAL ARCHITECTURAL PROJECTS

●Welcomed by many medical institutions at home and abroad even used by Apple Direct Experience Store Samsung Semiconductor Precision Workshop.

●Also suitable for interior decoration of hospital,schools laboratories,pharmaceutical plants airplanes, ships,high-speed rails.

Feature Specification

● Anti-bacterial and strongly anti-mildew

● Fire retardant

● Chemical resistance and strong corrosion resistance

●Free Formaldenhyde and green envionment

● No benzene,no heavy metal,can be recycled and used

●Anti-collosion and wear-resistant with super weather resistance

● The surface of wall panel is easy to clean

● Rich color

● Stable size

● Easy to install,no noise during installation

Technical Data Sheet

●Resistant to certain bacterial & fungal growth & Mould Proof (ASTM G 21-15) .

●Class A fire and smoke rating. (per ASTM E84-17)

●Class B fire and smoke rating (per GB8624-2012)

●Horizontal Burning (per UL94HB)

●Chemical And Corrosion resistant (per ASTM D 543-14/ASTM D2240-15/ASTMD638-14) .

●Impact resistant (per ASTM D256-10el And GB/T 14153-1993) .

●TVOC  (per CA CDPH 01350-voc )

●Color Difference (per SAEJ1545-2005)

●Color Stainning (per EN423:2001)

●Phthalate Test  (per SGS)

●Formaldehyde  (per CA CDPH 01350-voc And GB/T 18580-2017)

●Heavy Metal Test  (per CA65)

Installation Instruction

●Bolts&Screws

●Cut aluminum retainer (rubber strip) to desured length

●Drill the doles

●Measure and transfer the handrail mounting hole locations from the bracket,elbow.

●Cut the vinyl cover to the lengths between returns and elbows.

CARE INSTRUCTIONS

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.

PinGer® Hospital Promotional Wall Mounted Vinyl Handrails

Technical Specifications & Downloads

Download Pinger official technical documentation and specifications catalog below for Handrail Model HR1401W.

Pinger Handrail HR1401W Technical Specifications Download PDF

Technical Data & Specifications

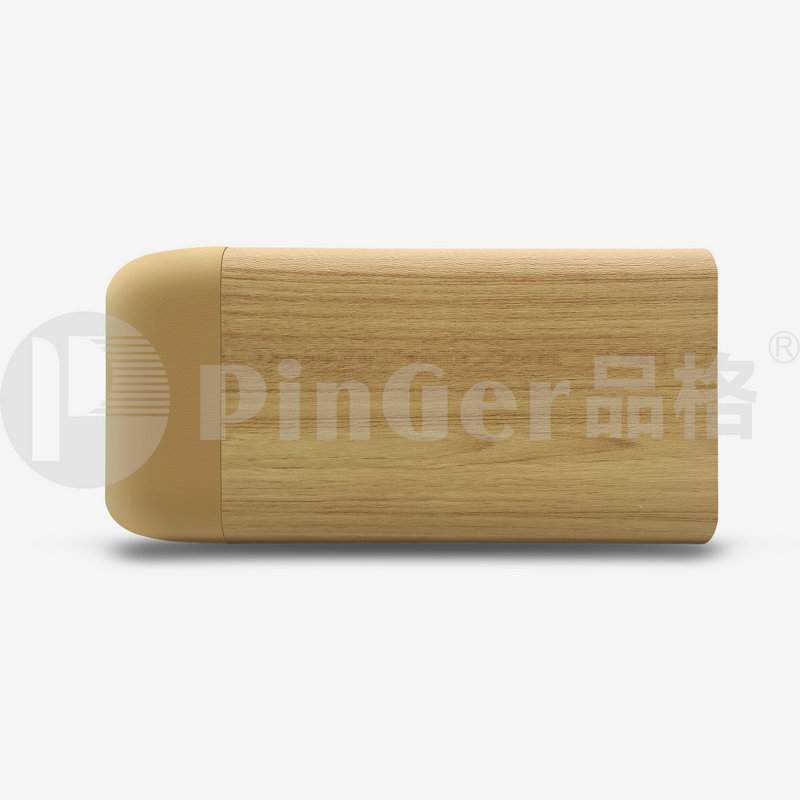

Pinger Hospital Promotional Wall Mounted Vinyl Handrails HR1401W is engineered with vinyl & aluminum in wood color Standard Length：5m Standard Width： 140mm diameter of grip：38mm distance with wall：38mm. Specially designed for hospital corridors and high-traffic commercial spaces, HR1401W offers exceptional heavy-duty collision protection, fire-retardant performance, and non-phthalate environmental safety.

HYGIENE

Bacterial & Fungal Resistant

ANTIBACTERIAL PERFORMANCE

JIS Z 2801:2010 (>99.9% inhibits growth of E. coli & S. aureus)

FUNGAL & MOULD PROOF

ASTM G21-15 (>99.9% inhibits, Class 0 zero-growth rating against Aspergillus & Penicillium)

SAFETY

Fire Performance

FIRE & SMOKE RATING
ASTM E84-17 (Class A) / Euro EN13501-1 (Class B)

HORIZONTAL BURNING
ASTM D635-22 (Self-extinguishing, stable under fire)

SMOKE TOXICITY
Non-toxic, low smoke density growth

DURABILITY

Impact & Chemical

HIGH IMPACT PROTECTION
ASTM D256-10el & GB/T 14153-1993 Heavy-duty crash test pass

CHEMICAL RESISTANCE
ASTM D543-14 (Resists hospital disinfectants, acids & alkalis)

STAIN RESISTANCE
EN 423:2001 (Level 0 stain resistant, easy to clean)

SUSTAINABILITY

Green & LEED Certifications

TVOC & FORMALDEHYDE
CDPH01350 & GB/T 18580-2017 (Low VOC, Formaldehyde-free)

HEAVY METAL SAFETY
CA65 & SGS Certified (Phthalate-free, Lead & Benzene-free)

SUSTAINABLE & RECYCLABLE
LEED Compliant, FSC Certified & 100% Recyclable materials

HR1401W Core Performance Highlights

Designed for hospital corridors, clinical nursing stations, cleanrooms, laboratories, senior care facilities, educational institutions, and high-traffic commercial spaces requiring continuous handrail protection.

ANTI-BACTERIAL & MILDEW PROOF

PinGer HR1401W handrail incorporates advanced antibacterial agents that actively inhibit bacterial growth (>99.9%) and mould formation. The non-porous surface withstands frequent cleaning with medical-grade disinfectants, helping hospitals achieve strict hygienic standards.

FIRE SAFETY & FLAME RETARDANT

Engineered to comply with ASTM E84 Class A and Euro EN13501-1 Class B fire standards, the HR1401W handrail offers excellent self-extinguishing properties and low smoke density, ensuring enhanced building interior safety during fire emergencies.

HEAVY-DUTY IMPACT PROTECTION

Featuring a heavy-duty impact-resistant construction (140mm diameter of grip：38mm distance with wall：38mm width), HR1401W effectively absorbs and deflects severe collisions from hospital beds, wheelchairs, and service carts, dramatically cutting drywall repair costs.

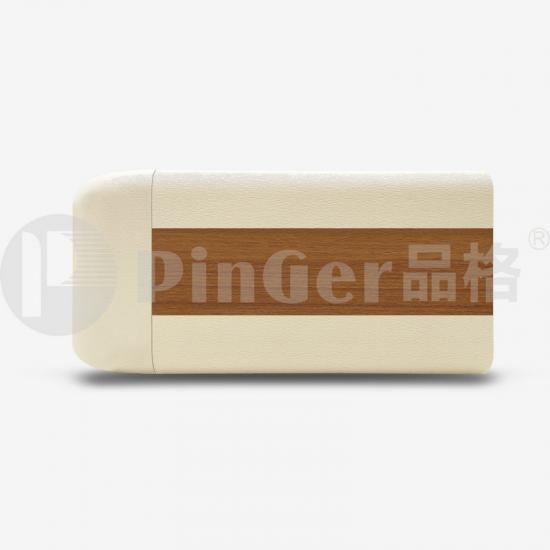

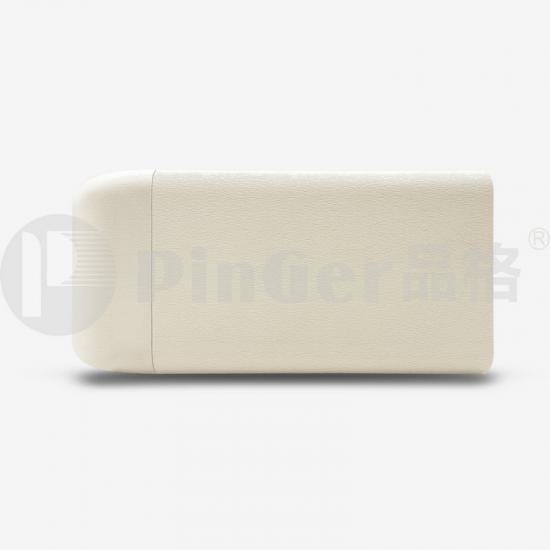

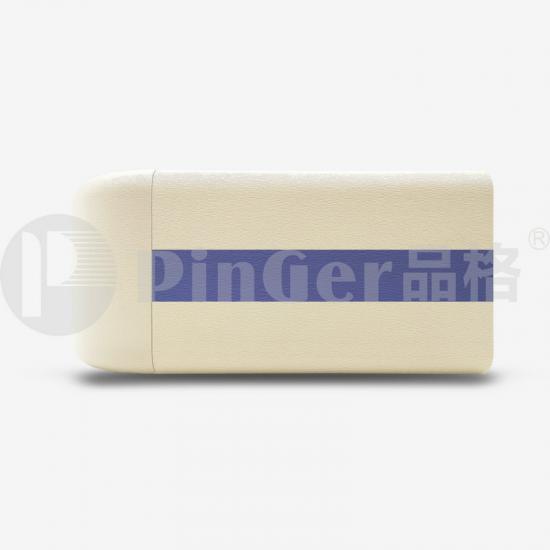

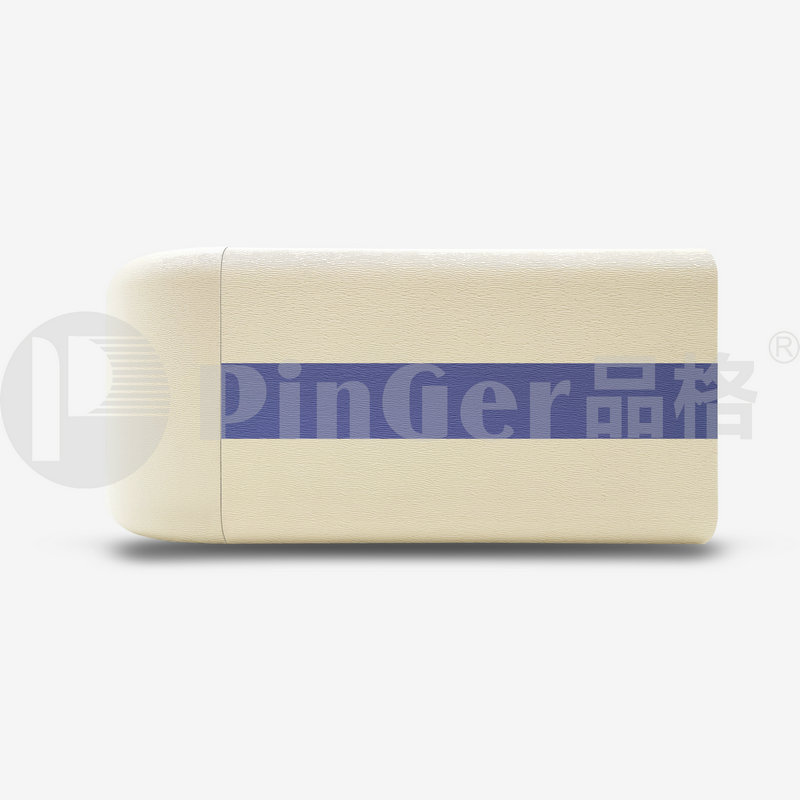

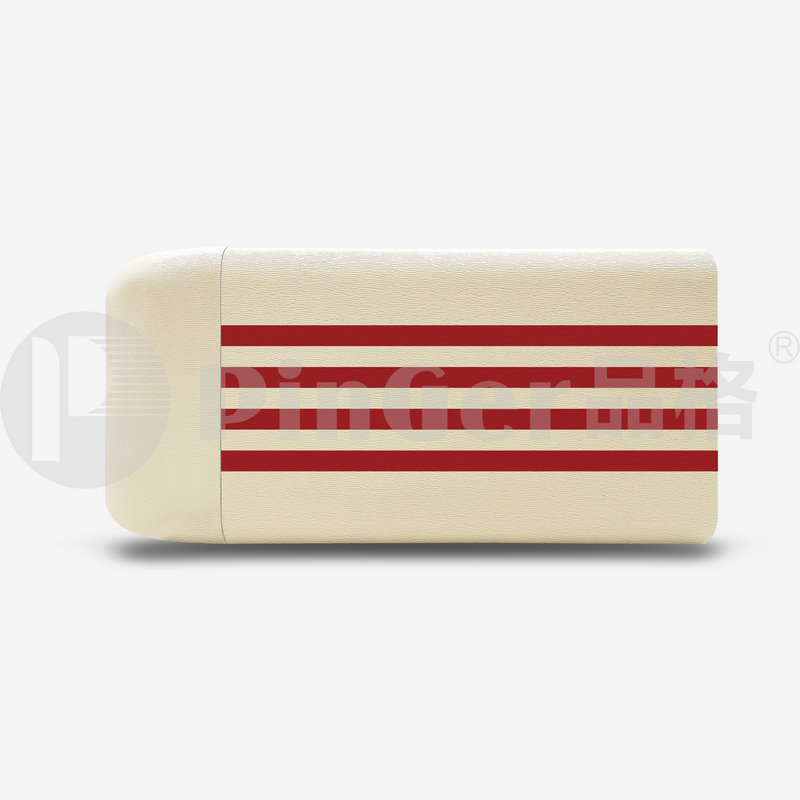

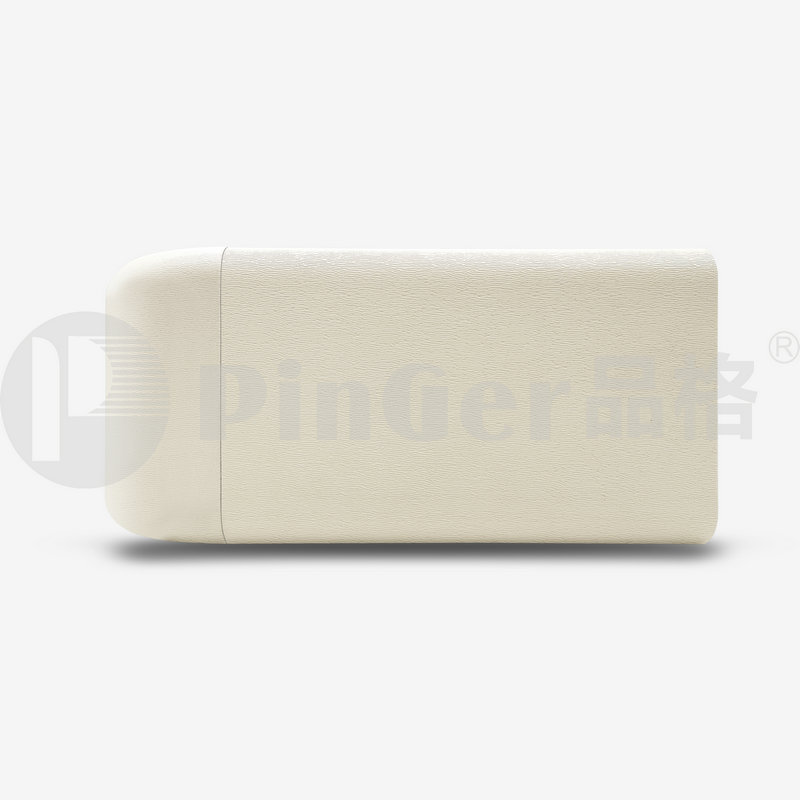

AVAILABLE IN VARIOUS COLORS & STYLES

LEED, LCA & GREEN SUSTAINABLE

PinGer HR1401W handrail products are LCA life-cycle assessed and LEED green building compliant. Free of phthalates, heavy metals, and formaldehyde, HR1401W maintains superior indoor air quality with ultra-low VOC emissions and is 100% recyclable.

QUALITY ASSURANCE

• 1. Fire Performance Characteristics

Provide handrails conforming with EN13501 - 1 Class B fire rating. FLAME SPEAD AND SMOKE:ASTM  E84,CLASS A, The smoke concentration is qualified, non-toxic, and there is no dripping when burning.

2. Fungal and Bacterial Resistance

The resin material is rich in silver ions,inhibiting the fungal growth on the surface of wall panel,such as the growth of pathogenic organisms such as Escherichia coli,staphylococcus aureus .Antibacterial  proof:JISZ2801:2010.

3. Mould Proof

ASTM G21-15,Excellent, moisture-proof and mildew-proof, inhibit aspergillius brasiliensis , penicillium rope,short-stemmed sprouted mould,bulbar hairy shell and trichoderma viride.

4. Horizontal burning

As tested in accordance with the procedures specified in UL94HB, Standard Test Method for Rate of Burning and/or Extent and Time of Burning of Self-Supporting Plastics in a Horizontal Position.

5. Impact Strength

Provide rigid Vinyl profile materials that have an Impact Strength of 1kg as tested in accordance with the procedures specified in ASTM  D256- 10EL,GB8624 -2012, Impact Resistance of Plastics.

6. Environmental friendly

No any toxic gas, formaldehyde is qualified.You can check in immediately, and there is no need to absorb formaldehyde TVOC:ISO  16000-3-6-9 AND SGS:CA CDPH 01350 -VOC

7. Does not stain

Strong, water proof,easy to clean the surface,Anti-pollution, not easy to dye，Staining test:EN423:2001.

8. ISO Certified

Provide ISO9001/14001/45001 Certified material. Profiles shall meet the requirements of ISO9001/14001/45001 Certification Standards for Low-Emitting Products and ISO9001/14001/45001 Product Emission Standard.

9. Chemical and CORROSION Resistance

Tested according to ASTM D 543- 14/ASTM D2240- 15/ASTM D638- 14,Excellent, small coefficient of thermal expansion and cold contraction, and almost no change in temperature size.,Antibacterial and bacteriostatic, effectively resisting most acids, alkalis, salts, alcohols,Corrosion of iodine, vegetable oil, liquor, etc.

10. No heavy metals

Does not contain lead, cadmium and other toxic and harmful heavy metals,Heavy Metal Test:CA65

11. Durable and easy to install

Duralble,Wear-resistant, not easy to scratch the surface, dirt, dust ,Not easy to attach, not fouling, simple maintenance.Convenient construction, construction, no noise.

INSTALLATION

Remark：

1、Daily cleaning and maintenance ,it can be used to clean the dust layer with a clean cloth

2、If there are a few stains: footprints,tea marks,etc,use a clean cloth to wipe

3、If the stain is not timely treatment,stay too long,use a clean cloth and neutral cleaner to wipe.

4、Use dishcloth to add warm warm water or cleaner to wipe, need to use clean dry dishcloth to wipe Water mark.

Cleaning tool selection:

(1)clothes: clean clothes or scouring pad

(2)cleaner: nataural cleaner

Special remind：

●Use dishcloth to add warm water or cleaner to wipe. Need to use clean dry dishcloth to wipe Water mark.
